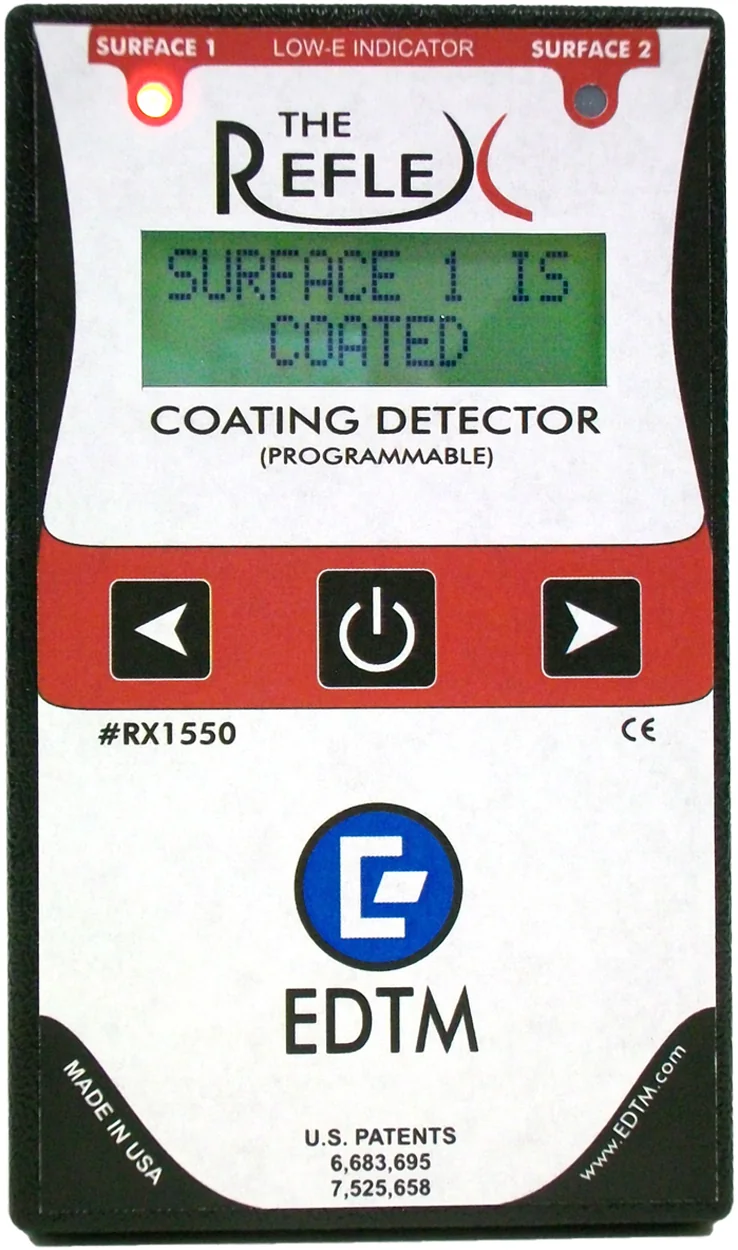

• RX1550 | "RefleX" Coating Detector

"RefleX" Programmable Coating Detector

The first meter of its kind that can be programmed in the field to identify new coatings.

Program the meter to detect the first surface coatings

Users can store calibrations of new coatings that can be tested in the field. After testing the new coating, the instrument displays whether the coating is detectable or not. Calibrations for these new coatings can be stored and even uniquely named. Then the coating can be selected from the menu system and detected. Consult the manufacturer for customized applications of the instrument.

  • Detect up to 22 uniquely named coatings.
  • Manage the coatings by adding, deleting, or updating them at any time (this includes the pre-loaded coatings)
  • If the manufacturer changes a coating, the meter can easily be re-calibrated in the field for the new coating.

OPTO-CLEAN technology ensures accurate readings

  • If the OPTO-CLEAN software detects the build-up of dirt on the lens that could affect the accuracy of the reading, the meter displays a warning that instructs the user to clean the lens.
  • The warning stops once the lens is cleaned, so the operator knows the meter is working correctly.

Detect Low-E Coatings

The meter includes a single pane Low-E coating detector that will operate during all measurements, testing surface 1 and 2 of the nearest pane of glass. LED indicators confirm the coating location.

The meter comes pre-loaded with the ability to detect:

  • Low-E Coatings (single pane)
  • Tin Side of clear (uncoated) Float Glass
  • Self-Clean Coatings (Pilkington Activ® and PPG Sunclean®)
  • Guardian ShowerGuard® Coatings
  • Guardian DiamondGuard® Coatings
  • Guardian Surface 4 Low-E Coatings (IS15 & IS20)
  • Cardinal Surface 4 Low-E Coatings (i81 & i89)
  • AR (Anti-Reflective) Coatings
  • Saint-Gobain Bioclean® Coatings


  • Identify the coated side of the glass
  • The meter can easily be re-calibrated, and new coatings can be programmed in the field
  • Use pre-loaded calibrations or self-programmed
  • Powered by a standard 9-volt alkaline battery
  • Automatic power-down extends battery life
  • User-friendly LCD display operation with step-by-step directions on how to use
  • Backlit LCD display for any lighting condition
  • Single pane low-E detection is built-in
  • OPTO-CLEAN technology ensures accurate measurements every time

User Manual Download

RX1550 User Manual

RX1550 | "RefleX" Coating Detector

  • Product Code: RX1550
  • Availability: In Stock
  • $399.00

  • 5 or more $379.00
  • 10 or more $355.00
